A heavy-duty diesel engine without a turbocharger is just a heavy piece of iron. It is the turbo that gives your truck the torque to pull 80,000 pounds up a grade.
When your turbo is healthy, you don’t think about it. When it fails, your truck stops making money. Understanding how this critical component works is the first step in keeping it alive and avoiding massive repair bills.
Here is a straight look at what a turbocharger actually does, how it generates boost, and how to know when yours is starting to fail.
What a Turbocharger Actually Does
An engine needs two things to make power: fuel and air. You can inject all the fuel you want, but if you don’t have enough air to burn it, you just get black smoke and high exhaust gas temperatures.
A turbocharger is an air pump driven by exhaust gas. It forces more air into the engine’s cylinders than the engine could pull in naturally. More air means the engine can burn more fuel efficiently, creating a massive increase in horsepower and torque without increasing the physical size of the engine.

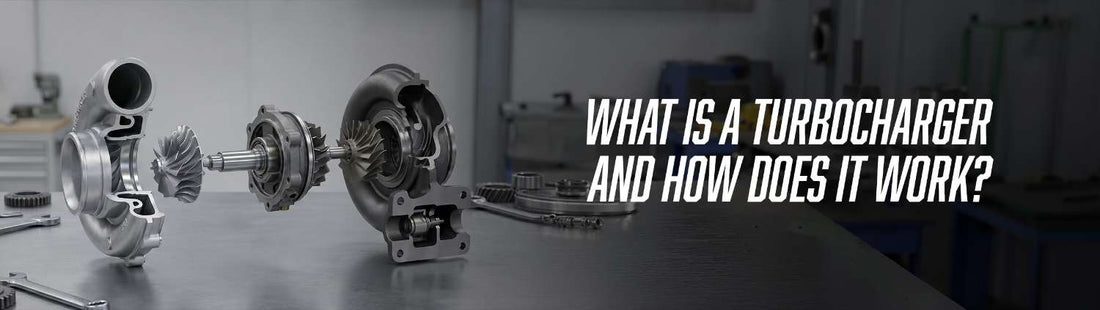

Key Components: Turbine, Compressor and Shaft
A turbocharger is a relatively simple concept built with incredibly precise engineering. It consists of three main parts:
The Turbine
This sits in the exhaust stream. Hot, expanding exhaust gases leaving the engine spin the turbine wheel at incredible speeds.
The Compressor
This sits in the intake stream. It is connected to the turbine by a solid metal shaft. As the turbine spins, the compressor wheel spins, sucking in fresh air and compressing it.
The Shaft and Bearings
The shaft connecting the two wheels spins at over 100,000 RPM. It is supported by bearings that rely entirely on a constant flow of clean engine oil to prevent them from melting under the extreme heat and friction.
How Boost Pressure Is Generated
When you step on the throttle, the engine burns more fuel and creates more exhaust gas. This exhaust gas spins the turbine faster.
The faster the turbine spins, the faster the compressor spins. The compressor pulls in ambient air, compresses it, and forces it into the engine’s intake manifold. This pressurized air is called “boost.”
Because compressing air makes it hot, the pressurized air usually passes through a Charge Air Cooler (intercooler) to cool it down and make it denser before it enters the engine. Denser air equals more power.
Not all turbos are the same. Heavy-duty trucks use different designs depending on the engine’s requirements.
Single Turbo
The traditional design. Reliable, but can suffer from “turbo lag” at low RPMs before enough exhaust gas is generated to spool it up.
Uses a divided exhaust housing to pulse exhaust gases more efficiently into the turbine, reducing lag and improving low-end torque.
Variable Geometry Turbo (VGT)
The standard on modern diesel engines like the Cummins ISX and Volvo D13. It uses movable vanes inside the turbine housing to change the exhaust flow, acting like a small turbo at low RPMs for quick spooling, and a large turbo at high RPMs for maximum airflow.
How to Know Your Turbo Is Healthy
A healthy turbocharger is consistent. It builds boost smoothly as engine RPM increases.
Your boost gauge should rise steadily under load without erratic jumping. The engine should pull strong without hesitation. The exhaust should be relatively clean, and the turbo itself should produce a smooth, consistent whistle, not a loud whine or grinding noise.
Signs a Turbo Is Starting to Fail
Turbos do not usually fail without warning. They give you turbo failure symptoms that you cannot afford to ignore.
If you hear a loud siren sound or high-pitched whine under load, the internal bearings are failing. If the truck feels gutless and produces heavy black smoke, the turbo is not building boost. If you see blue smoke or find oil pooling in your intercooler piping, the internal seals are blown.
Catch it now or pay for it later. When a worn turbo starts losing boost, a proper turbocharger rebuild brings it back to spec without the price of a replacement.
When to Get Your Turbo Inspected
If you are experiencing any of those symptoms, or if your check engine light is on with boost-related fault codes, do not keep driving.
A failing turbo can shatter, sending metal shrapnel directly into your engine. That turns a turbo replacement into a complete engine rebuild. We handle turbocharger remanufacturing and repair every day. We diagnose the problem fast and give you a straight answer.
Give us your VIN, engine, and symptoms. We’ll know pretty quickly what we’re dealing with.
