Cummins ISX15 Turbo Problems: Symptoms, Causes & What Repairs Cost

The Cummins ISX15 is one of the most common heavy-duty engines on Canadian roads. It is a powerful, reliable workhorse, but like any engine, its turbocharger is a high-stress component that eventually requires attention. When your ISX15 turbo acts up, you need a specialist who understands its unique failure patterns.

You don’t have time for a generalist to guess at the problem. Every hour your truck sits is revenue lost. You need a straight answer on what’s wrong, what it costs, and when you can get back on the road.

Here is a straight look at why the ISX15 turbo fails, the symptoms you cannot ignore, and what to expect for repair costs in Canada.

Why the ISX15 Turbo Fails

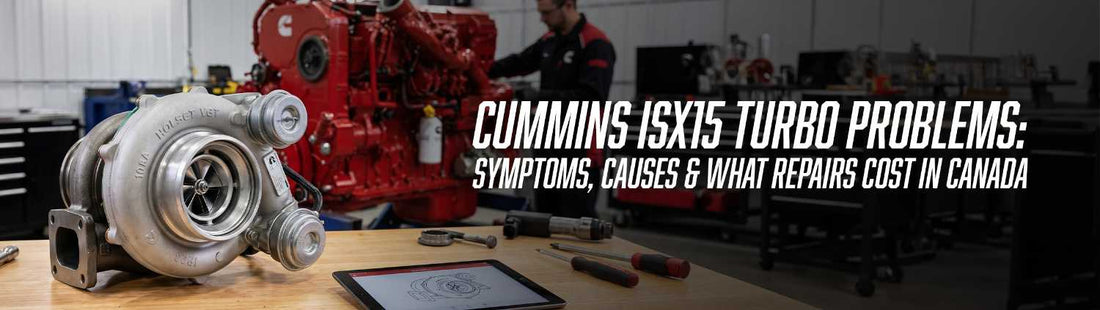

The Cummins ISX15 typically uses a Holset VGT (Variable Geometry Turbocharger). While robust, these turbos operate under immense heat and pressure, and their VGT mechanism is prone to specific issues.

Soot Buildup in the VGT

The primary culprit behind most ISX15 turbo failures is soot buildup. The engine’s EGR system, designed to reduce emissions, recirculates exhaust gases back into the intake. This exhaust gas contains soot, which can accumulate within the VGT mechanism, causing the movable vanes to stick.

When the vanes stick, the VGT actuator has to work harder to move them, eventually leading to actuator failure.

Oil Starvation & Bearing Wear

Beyond soot, oil starvation or contaminated oil can lead to premature bearing wear. Left unaddressed, this causes catastrophic turbo failure as the rotating assembly loses support and tolerances break down.

Common Symptoms to Watch For

Your ISX15 will tell you when its turbo is in trouble. Pay attention to these warning signs:

Loss of Power

A noticeable decrease in acceleration or the ability to maintain speed, especially on inclines. This indicates the turbo isn’t building sufficient boost.

Black Smoke

Excessive black smoke from the exhaust, particularly under acceleration, means the engine isn’t getting enough air to burn the fuel efficiently. This is a classic sign of a VGT issue or a boost leak.

High-Pitched Whine or Siren Sound

A distinct, loud whine that changes with engine RPM suggests worn bearings within the turbocharger.

Check Engine Light

The ISX15’s sophisticated engine control module will log fault codes related to boost pressure, VGT position, or actuator performance if the turbo isn’t operating within specifications.

Increased Oil Consumption

Blue smoke from the exhaust or visible oil leaks around the turbocharger indicate failing oil seals, allowing engine oil to enter the exhaust or intake.

Holset Turbo Specifics on the ISX15

The Holset VGT turbo on the ISX15 is a complex component. Its variable geometry mechanism is critical for optimizing engine performance and emissions. When this system malfunctions, it can lead to a cascade of problems.

Issues often stem from the electronic VGT actuator, which controls the vanes. If the vanes are seized due to soot, the actuator will overwork and fail. This is a common point of failure for holset turbo problems on the ISX15.

Repair vs Rebuild vs Replacement

When facing an ISX15 turbo issue, you generally have three options:

Repair

If the problem is isolated to the VGT actuator and the mechanical turbo core is sound, replacing just the actuator is often the most cost-effective solution. This requires specialized calibration.

Rebuild

If the internal bearings, seals, or VGT mechanism are worn but the main housing is intact, a complete rebuild can restore the turbo to factory specifications. This is a smart choice for extending the life of your existing unit.

Replacement

For catastrophic failures like a shattered compressor wheel or a cracked housing, a full replacement is necessary. We offer high-quality turbocharger remanufacturing options that provide reliability without the new OEM price tag.

Cost Ranges for ISX15 Turbo Work in Canada

The cost of addressing an ISX15 turbo problem can vary significantly based on the chosen solution and the extent of the damage. You need clear expectations to make an informed decision.

Repair Type	Estimated Cost (CAD)	Notes
VGT Actuator Replacement	$1,200 – $2,500	Plus labor & calibration
Complete Turbo Rebuild	$2,500 – $5,500	Depends on parts & labor
New / Remanufactured Replacement	$3,500 – $7,000+	Varies by supplier & model

These are estimates. A precise quote requires a thorough diagnosis.

How Turbo Express Diagnoses ISX15 Issues

We don’t do guessing. We specialize in turbochargers for heavy-duty diesel engines, including the Cummins ISX15.

Our process involves electronic diagnostics to check VGT actuator communication, physical inspection of the turbo for play and damage, and testing the VGT mechanism for free movement. This allows us to accurately determine the root cause and recommend the most effective, cost-efficient solution.

Give us your VIN, engine, and symptoms. We’ll know pretty quickly what we’re dealing with.

Frequently Asked Questions

Can you drive with a bad ISX15 turbo?

You shouldn’t. A failing turbo can drop power and trigger limp mode, and a failed seal or shattered wheel can send debris downstream, turning a repair into a far costlier engine job. If you’re seeing these symptoms, get it diagnosed before the next haul.

How long does an ISX15 turbo rebuild take?

A straightforward actuator replacement is usually same-day once the part and calibration are in hand. A full rebuild or replacement depends on parts availability and shop schedule, but most jobs are completed within a few business days.

Is rebuilding cheaper than replacing the turbo?

Usually, yes. If the housing is intact and only bearings, seals, or the VGT mechanism are worn, a rebuild restores factory spec for less than a new or remanufactured unit. We’ll only recommend replacement when the damage makes a rebuild uneconomical.
